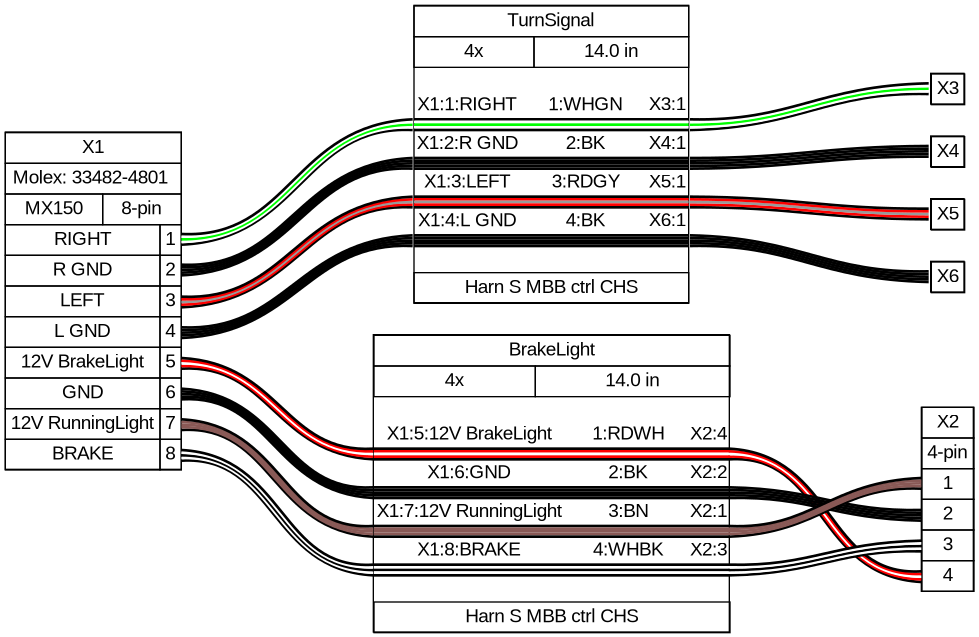

rear lights¶
Interactive HTML · SVG · PNG · BOM (TSV) · Source
Bill of materials¶
| Id | Description | Qty | Unit | Designators | Manufacturer | MPN |
|---|---|---|---|---|---|---|
| 1 | Cable, 4 wires | 28.0 | in | BrakeLight, TurnSignal | ||
| 2 | Connector | 4 | X3, X4, X5, X6 | |||
| 3 | Connector, 4 pins | 1 | X2 | |||
| 4 | Connector, MX150, 8 pins | 1 | X1 | Molex | 33482-4801 | |
| 5 | Label | 1 | BizLink Technology(Shenzhen) | 56-08201 rev 2 |
