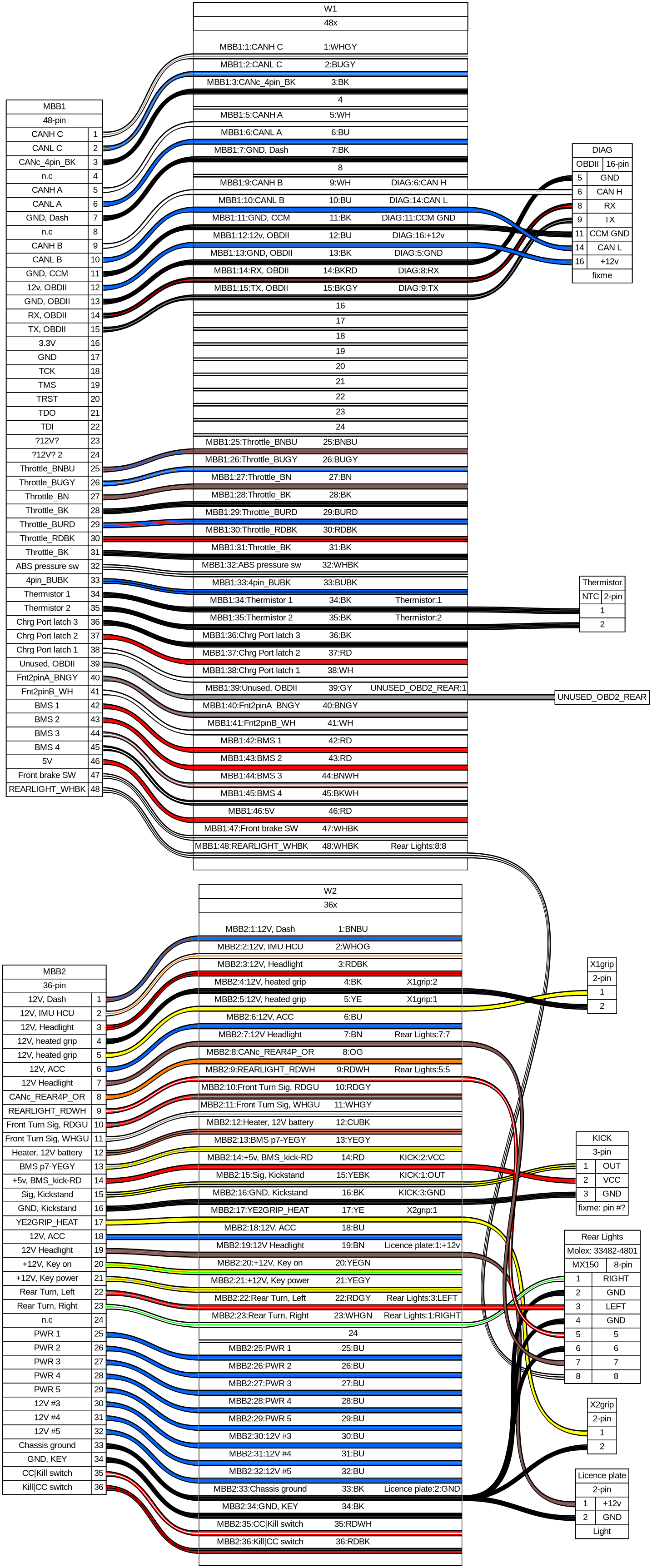

MBB¶
Interactive HTML · SVG · PNG · BOM (TSV) · Source
Bill of materials¶
| Id | Description | Qty | Unit | Designators | Manufacturer | MPN |
|---|---|---|---|---|---|---|
| 1 | Cable, 36 wires | 0 | m | W2 | ||
| 2 | Cable, 48 wires | 0 | m | W1 | ||
| 3 | Connector | 1 | UNUSED_OBD2_REAR | |||
| 4 | Connector, 2 pins | 3 | Licence plate, X1grip, X2grip | |||
| 5 | Connector, 3 pins | 1 | KICK | |||
| 6 | Connector, 36 pins | 1 | MBB2 | |||
| 7 | Connector, 48 pins | 1 | MBB1 | |||
| 8 | Connector, MX150, 8 pins | 1 | Rear Lights | Molex | 33482-4801 | |
| 9 | Connector, NTC, 2 pins | 1 | Thermistor | |||
| 10 | Connector, OBDII, 16 pins | 1 | DIAG |
