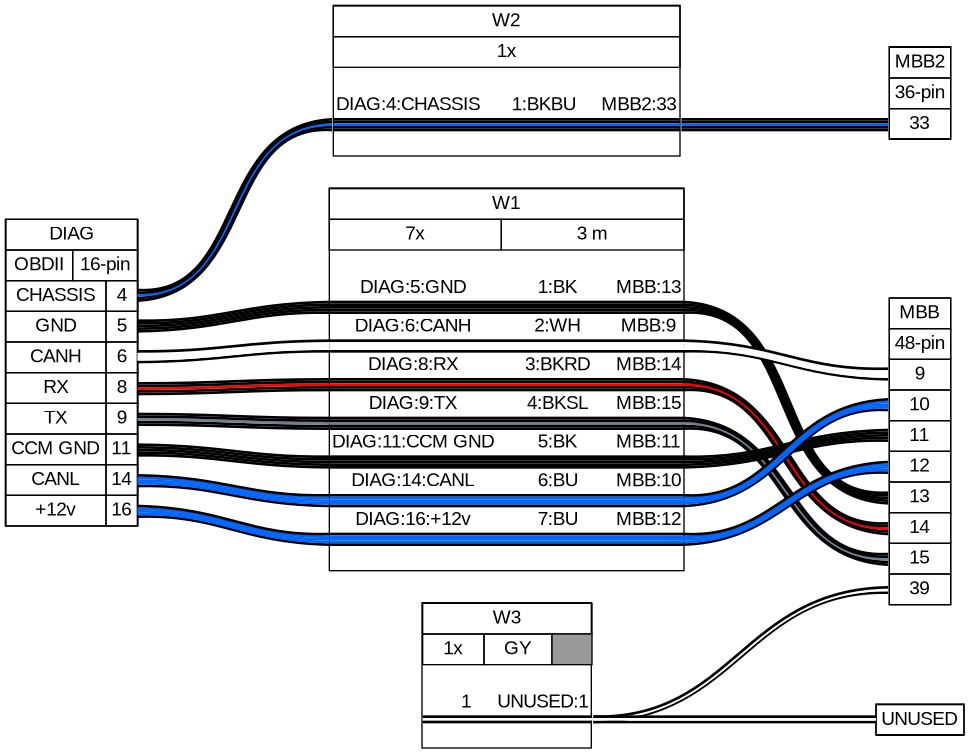

OBDII¶
Interactive HTML · SVG · PNG · BOM (TSV) · Source
Bill of materials¶
| Id | Description | Qty | Unit | Designators |
|---|---|---|---|---|
| 1 | Cable, 1 wires | 0 | m | W2 |
| 2 | Cable, 1 wires, GY | 0 | m | W3 |
| 3 | Cable, 7 wires | 3 | m | W1 |
| 4 | Connector | 1 | UNUSED | |
| 5 | Connector, 36 pins | 1 | MBB2 | |
| 6 | Connector, 48 pins | 1 | MBB | |
| 7 | Connector, OBDII, 16 pins | 1 | DIAG |
