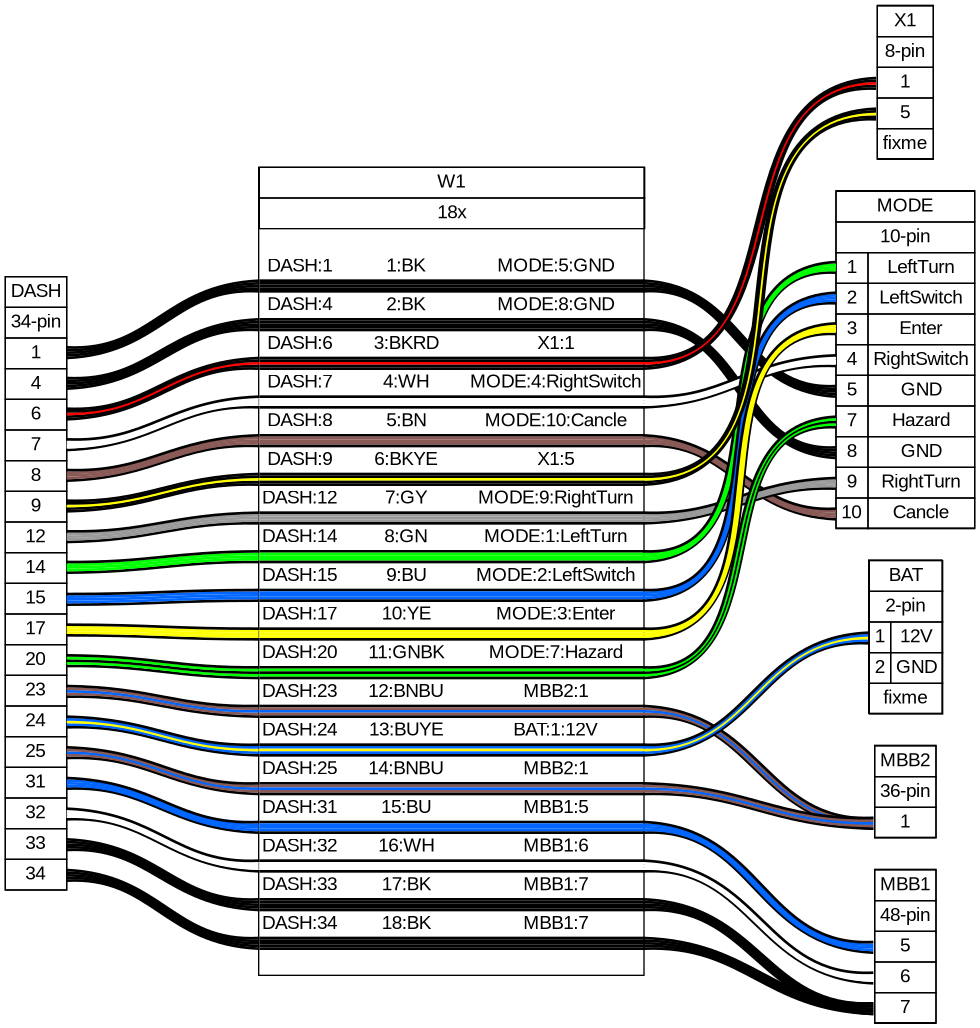

dash¶
Interactive HTML · SVG · PNG · BOM (TSV) · Source
Bill of materials¶
| Id | Description | Qty | Unit | Designators |
|---|---|---|---|---|
| 1 | Cable, 18 wires | 0 | m | W1 |
| 2 | Connector, 10 pins | 1 | MODE | |
| 3 | Connector, 2 pins | 1 | BAT | |
| 4 | Connector, 34 pins | 1 | DASH | |
| 5 | Connector, 36 pins | 1 | MBB2 | |
| 6 | Connector, 48 pins | 1 | MBB1 | |
| 7 | Connector, 8 pins | 1 | X1 |
