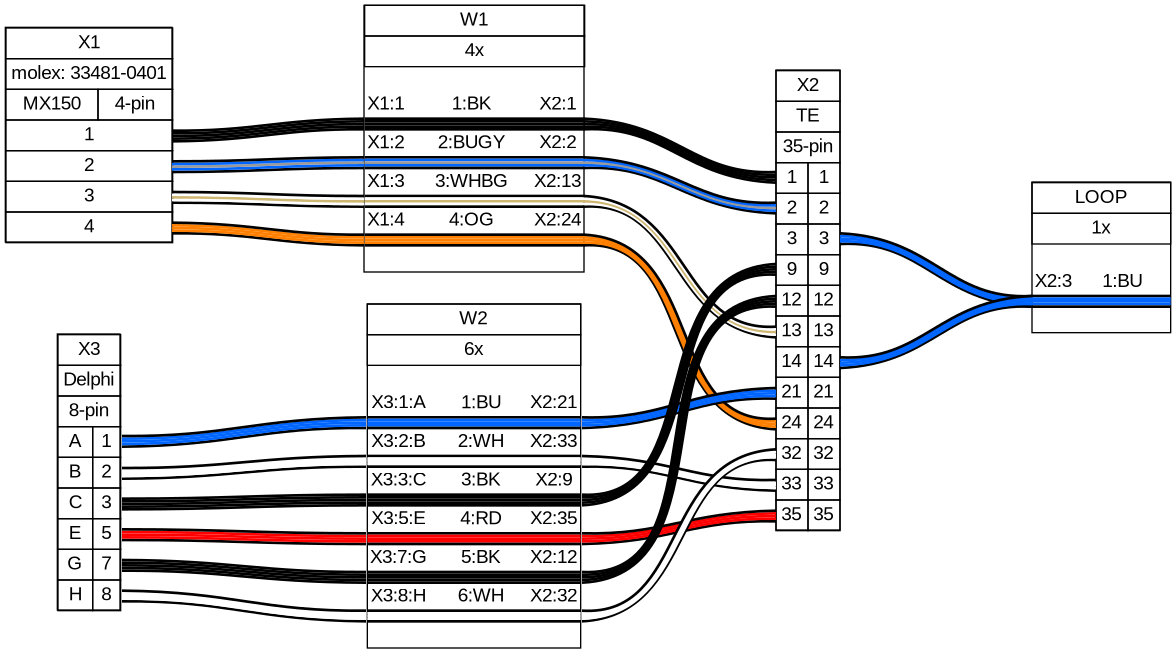

motor¶
Interactive HTML · SVG · PNG · BOM (TSV) · Source
Bill of materials¶
| Id | Description | Qty | Unit | Designators | Manufacturer | MPN |
|---|---|---|---|---|---|---|
| 1 | Cable, 1 wires | 0 | m | LOOP | ||
| 2 | Cable, 4 wires | 0 | m | W1 | ||
| 3 | Cable, 6 wires | 0 | m | W2 | ||
| 4 | Connector, 35 pins | 1 | X2 | TE | ||
| 5 | Connector, 8 pins | 1 | X3 | Delphi | ||
| 6 | Connector, MX150, 4 pins | 1 | X1 | molex | 33481-0401 | |
| 7 | Label | 1 | BizLink Technology(Shenzhen) | 56-08188 rev 4 |
