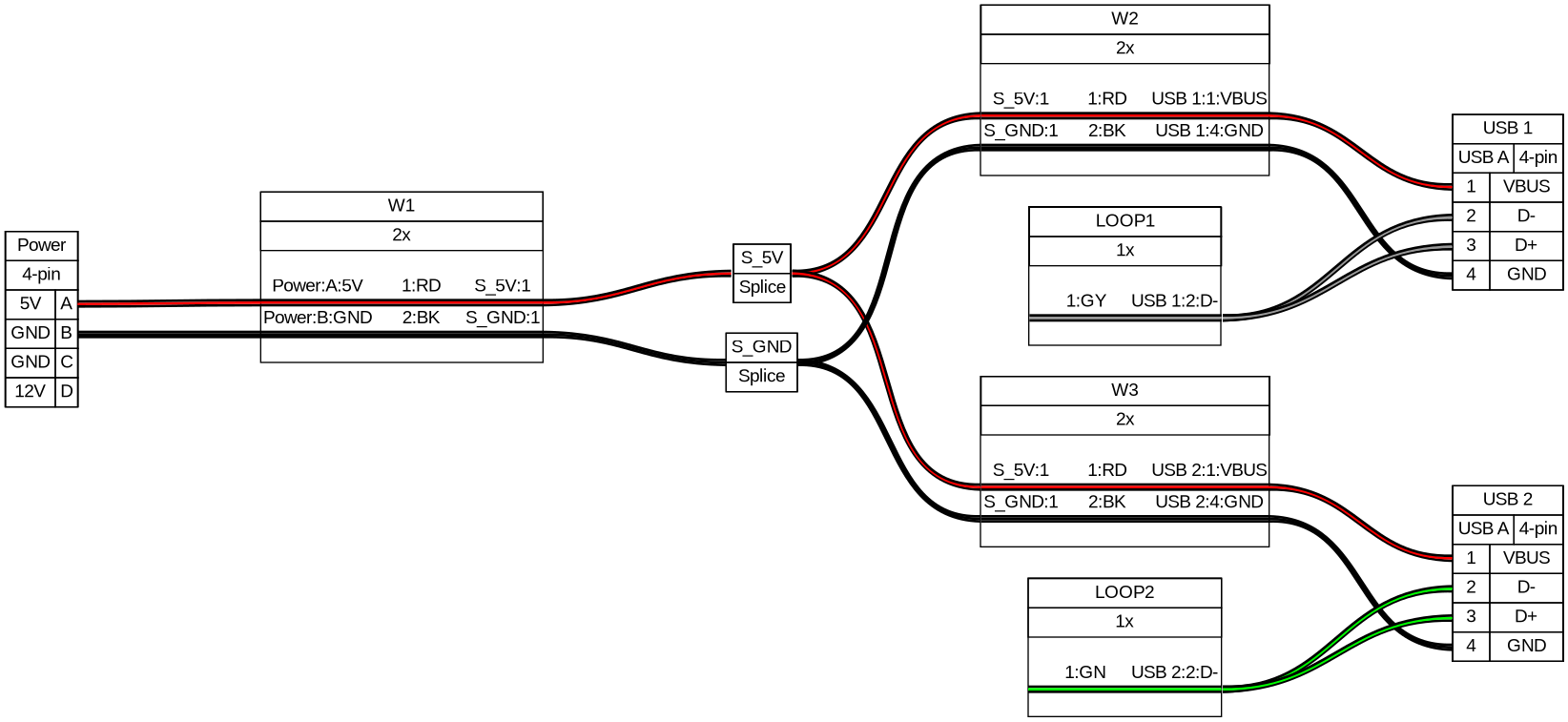

USB¶
Interactive HTML · SVG · PNG · BOM (TSV) · Source
Bill of materials¶
| Id | Description | Qty | Unit | Designators |
|---|---|---|---|---|
| 1 | Cable, 1 wires | 0 | m | LOOP1, LOOP2 |
| 2 | Cable, 2 wires | 0 | m | W1, W2, W3 |
| 3 | Connector, 4 pins | 1 | Power | |
| 4 | Connector, Splice | 2 | S_5V, S_GND | |
| 5 | Connector, USB A, 4 pins | 2 | USB 1, USB 2 |
